The Structural Hazards of Proportional Figures in Tables
When numbers sit inside financial spreadsheets, analytical charts, or telemetry dashboards, standard proportional digits create jagged vertical columns. Because the numeral 1 is narrower than 8 or 0, columns drift horizontally, destroying the reader's vertical alignment and slowing down visual comparisons across rows.
Switching to tabular lining figures enforces identical horizontal bounding boxes for every numeral from zero through nine. This mechanical consistency allows decimal points, commas, and negative signs to stack with razor precision, transforming an unruly matrix into an instantly scannable analytical landscape.
In data-intensive systems, typography is not an aesthetic coating; it is the structural scaffolding that determines whether a user spots an anomaly in three seconds or makes an expensive error.
— Robert Miller, Information ArchitectEssential Anatomical Markers for Data Legibility
Selecting a typeface for high-density applications requires scrutinizing subtle anatomical traits that standard prose rarely tests. When designing for screens displaying thousands of simultaneous datapoints, prioritize the following characteristics:
- Open Apertures and Generous Counters: Letters like e, c, s, and numbers 6, 8, 9 must maintain wide openings to avoid filling in at small optical sizes or lower contrast ratios.
- Unambiguous Glyph Differentiation: Distinct shapes must separate capital I, lowercase l, and numeral 1, as well as uppercase O and numeral 0 through slashed or dotted variants.
- Robust X-Height with Moderate Stroke Contrast: Low contrast between thick and thin stems prevents letterforms from degrading or shimmering under variable pixel grid alignments.
Managing Hierarchy in High-Density Environments

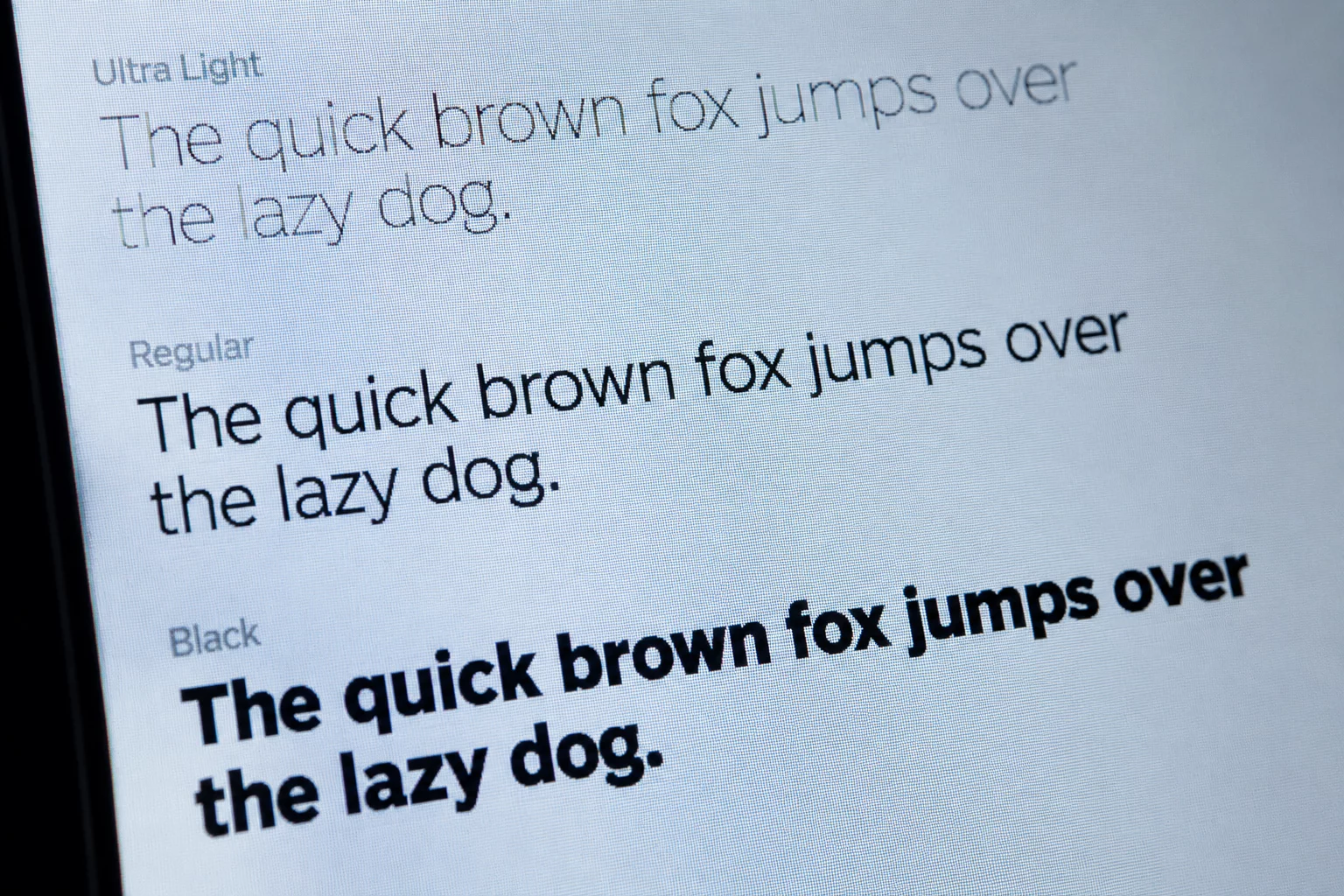

In compact data displays, increasing font size to establish hierarchy quickly exhausts available screen real estate. Instead of expanding scale, designers should utilize strategic font weight variance (such as Medium vs Regular) combined with restrained tint values to separate column headers from operational data values.
Furthermore, establishing proportional micro-margins and consistent cell padding maintains vertical tracking lines without relying on heavy borders. When typographic tone, tabular alignment, and disciplined spacing align, even the most complex dataset reads with immediate clarity.
